KSTUNIS (KLIESOFT Transponder unterstütztes Identifizierungs- System) is a software based procedure for WINDOWS 7 and later for an automatic identification of gauges, measuring tools or other goods.
KSTUNIS can support Tranponders (RFID) or 2D-Matrix codes alternatively, but - due to basically different scanners - not both at the same time. According to the actual state of development, newer 2D-Matrix code based systems are significantly less expansive with no technical disadvantages.
KSTUNIS (KLIESOFT Transponder unterstütztes Identifizierungs- System) is a software based procedure for WINDOWS 7 and later for an automatic identification of gauges, measuring tools or other goods.
KSTUNIS can support Tranponders (RFID) or 2D-Matrix codes alternatively, but - due to basically different scanners - not both at the same time. According to the actual state of development, newer 2D-Matrix code based systems are significantly less expansive with no technical disadvantages.
The described identify system is covered by patent (DE102010004610.8) and other pending patent applications. Unlicenced use is prohibited by law and will cause legal consequences
Hardware Components
- Mini-Transponder (1 piece / object)
- RFID-Scanner with antenna, manually operated
- Read electronic
- Computer with RS232/COM-device
(b) 2 D-Matrix
- 2D-Matrix (1 piece / object)
- Matrixscanner manually operated
- Computer with RS232/COM- or USB-device
Mini-Transponder

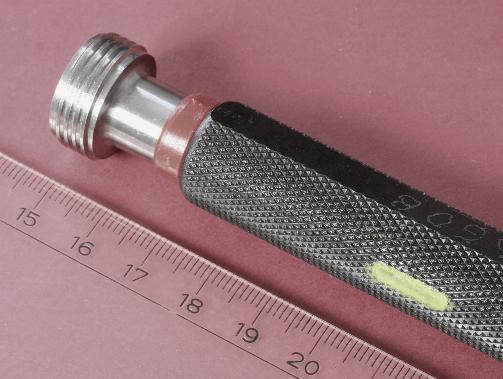

Gauge with Transponder

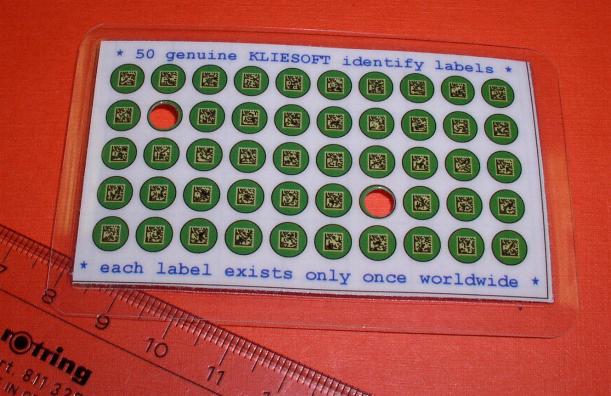

KLIESOFT Identify Labels
(2D-matrixes on a card)
(2D-matrixes on a card)
Gauge with 2D-Matrix
(Identify Label)
(Identify Label)
Software Components
Software KSTUNIS
Transponder software KSTUNIS is basically part of calibration software KSPUMA and of management software KSVAMP. For use with other calibration- or management- software systems it can be delivered separately.
KSTUNIS is designed to declare basic settings, to assign ident numbers, codecards and user permits and to write lists for data exchange with external sites (e.g. calibration laboratories).
It is divided in six program parts :
- KSTUNIS (Transponder- / Matrixsoftware) and optionally
- KSVAMP (Gauges and tools management software)
- KSPUMA (Calibration software)
Software KSTUNIS
Transponder software KSTUNIS is basically part of calibration software KSPUMA and of management software KSVAMP. For use with other calibration- or management- software systems it can be delivered separately.
KSTUNIS is designed to declare basic settings, to assign ident numbers, codecards and user permits and to write lists for data exchange with external sites (e.g. calibration laboratories).
It is divided in six program parts :
Staff Management
Basic settings, Code card assignments for users, user permits, Backdoor-Password
Directory Management
Client management, creating of different data structures for codes and identnumber assignments and lists
Transponder-/Matrix Management
Erasing of identnumber assignements, creating of Identnumber and Code- lists
Lists Management
Viewing, printing and deleting of lists
Load Transponder/ Matrix
Moving of any data addresses to the unique load address of KSPUMA
Read Transponder/ Matrix
Basic settings, Code card assignments for users, user permits, Backdoor-Password
Directory Management
Client management, creating of different data structures for codes and identnumber assignments and lists
Transponder-/Matrix Management
Erasing of identnumber assignements, creating of Identnumber and Code- lists
Lists Management
Viewing, printing and deleting of lists
Load Transponder/ Matrix
Moving of any data addresses to the unique load address of KSPUMA
Read Transponder/ Matrix
Transponder/Matrix reading and intitiating, creating of SUB-, ADD-, AUTO-lists and of fail lists
Read- and write functions for new and existing Transponder/Matrix assignments can be found at proper places in softwaresysems KSPUMA and KSVAMP as well. There they work more concealed and automatic but not as flexible.

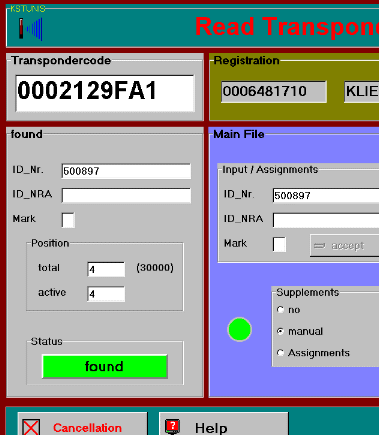

KSTUNIS-Transponder/Matrix read (Section, downscaled)
This part of software finds or substitutes scanned transponder or matrix codes (respectiveley the assigned gauges or measuring tools).
This part of software finds or substitutes scanned transponder or matrix codes (respectiveley the assigned gauges or measuring tools).
-
KSTUNIS-Startscreen (downscaled)
Before accessable, user must login by a transponder
or matrix equipped code card or by a backdoor password
Before accessable, user must login by a transponder
or matrix equipped code card or by a backdoor password
Entering of program part Staff Management requires a suitable permission when login with a codecard.
Permissions (1 - 7) are declared in program part Staff Management. Moreover basic parameters are defined there.
In the depicted example two users with different permissions are registered.

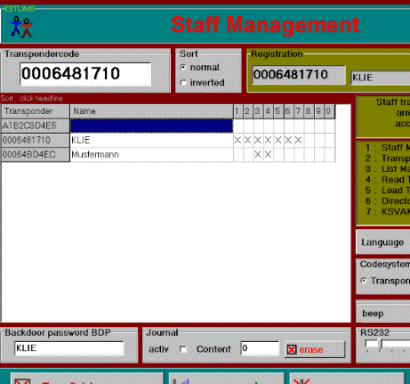

KSTUNIS-Staff Management (Section, downscaled).
Program part Staff Management defines basic parameters and users with their assigned permissions.
