KSMAKO_E
KSMAKO
KLIESOFT Maschinenbau Kompendium (KLIESOFT Mechanical Engineering Compendium)
(executable from WINDOWS 7)
Shark eats polecat:The new software KSMAKO contains all files and elements of KSILTIS - the KLIESOFT International Gauge and Tolerance Information System - in a revised form and with additional screwing calculations.
In addition, it provides a variety of calculations, formulas, material data and illustrative applications in the field of mechanical engineering in at present 9 chapters:
In addition, it provides a variety of calculations, formulas, material data and illustrative applications in the field of mechanical engineering in at present 9 chapters:
- Dimensions
Length, area, temperature, forces, pressure, power, energy / heat,
Mass / weight, volume, time, speed, viscosity
Table: Decimal prefixes - Geometry / components / weight
Polynomials / averages, triangle, rectangle, trapezoid, circle, spheres,
Ball and circle cuts (segment, cutout, layer, ring), rods and tubes, cones and pyramids, transmissions
Tables: Density / spec. Weights of solids, liquids and gases - Plane workpieces and gauges
Gauges and workpieces with ISO or Dimensional tolerance, setting rings, testing and adjusting gauges, adjusting pins, feeler gauges, bloc gauges, gauges for internal and outside diameters to DIN and Unified, mm / inch switching
- Thread / thread gauges / screw connections
metric standard and fine pitch threads, Whitworth, Unified, Trapeze, Pg, HeliCoil, Test and Adjustment Gauges, Round Threads, Saw Threads, Valve Threads, Electric Threads, Bike Threads, Buttress, ACME, US Pipe Threads, Metric Special Threads
according to German, foreign and international standards as well as design thread, mm / inch changeover
alternative gauge tolerances either according to DIN 13 or DIN 103
Bolting calculations with thread play, tightening torque, strength analysis and diagrams
Tables: Screw materials, strengths, sliding values - Tolerances and clearances
ISO-Tolerances : 0 - 3150 mm, IT1 - IT18, A - ZC, a - zc - Standard Measuring tools
Vernier calipers (1A, 2A, B, C, D, E, F), outside micrometer (D0 - D1),
Lever gauges (A - C), torque gauges (I/A - I/E, II/A - II/G),
Dial gauges (A, B, D - G), dial indicators
standardized designs and properties
- Kinematics
Translatorik, ballistics, rotation, shock / momentum
with editable calculation examples: Porsche 718 GTS, football (free fall), steel ball (free fall), soap box on the slope, biathlon shot, shot straight into the air, football shot, shot put, rocket (North Korea), metal roller shutter, windlass, general two-dimensional impact , eccentric (billiard) impact, central shock, plastic impact, oblique impact
and motion cycles: Porsche 718 GTS, Airbus A320, soap box
as well as game: billiards, carambolage and 3-bands
- Hydraulics und Pneumatics
Line losses, cylinder drives, motor drives (open and closed circuit), compressed air starter test (with / without pressure reducing valve)
Tables: Density and viscosity of fluids, guide values for flow resistance - Strength calculations / springs
Bend springs / leaf springs (6 profiles, 9 load cases), helical compression springs, coil tension springs, torsion bars, torsion springs
Animation for coil springs
Tables: Spring materials (Rm, bending and threshold strength, E and G modulus, density, own specifications), wire selection
Examples of printed issues
Screenshots
Enlargement: -> right mouse button -> display graphic

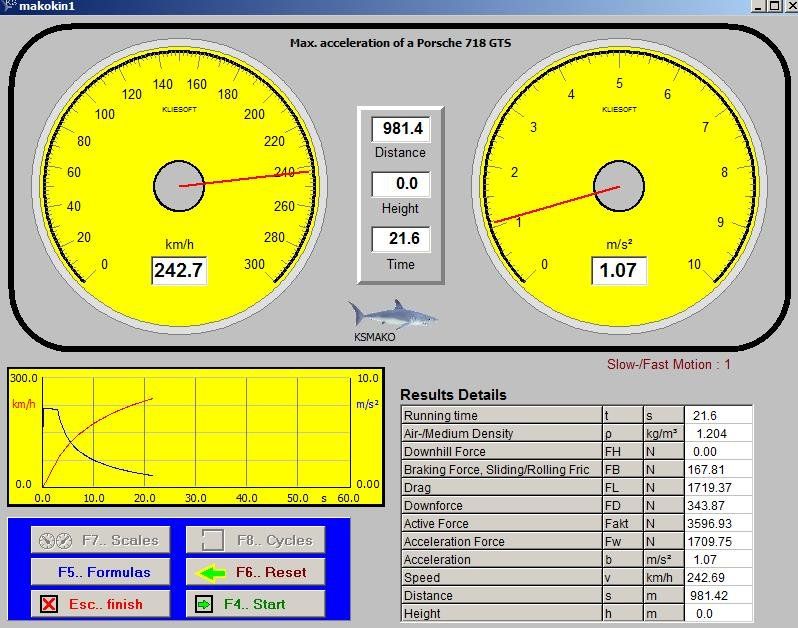

KINEMATICS Simulation: Maximum acceleration of a Porsche 718 GTS
--
HYDRAULICS AND PNEUMATICS - Simulation: Compressed air start without pressure reducing valve
----

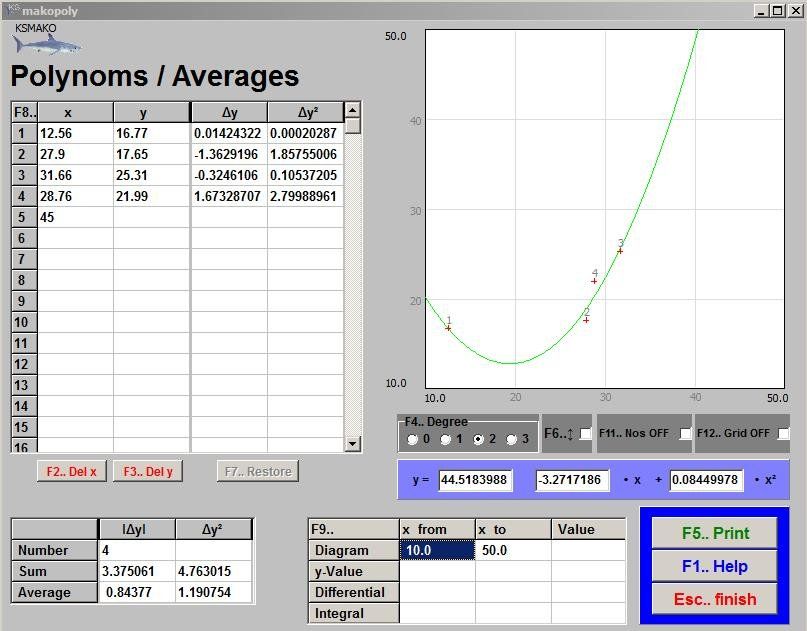

GEOMETRY / COMPONENTS / WEIGHTS: Polynomial approximation
---
THREAD / THREAD GAUGES / SCREW CONNECTIONS : Datasheet
Properties :
8-language screen and print output (English, German, Swedish, Spanish, Portuguese, Dutch, Italian, French)
printed output (optional with Project_ID and date of issue)
Formulary collections, page-related help texts in English or German,
Mouse and keyboard operation, color guide,
Royalty free DEMO version (with limited options),
Licensing via individual license files (via e-mail attachment)
Formulary collections, page-related help texts in English or German,
Mouse and keyboard operation, color guide,
Royalty free DEMO version (with limited options),
Licensing via individual license files (via e-mail attachment)
modular (limited) licensing possible
STRENGTH CALCULATIONS / SPRINGS: Calculation of a torsion spring
